Welded Type Radiators
Standard welded construction radiators offering reliable heat dissipation for conventional transformer applications.
- Continuous welded seams
- Leak-proof construction
- Standard inlet/outlet configuration
Flanged Type Radiators
Radiators with bolted flange connections, enabling easy maintenance access and field replacement when required.
- Bolted flange connections
- Easy maintenance access
- Field-replaceable design
Off-Set Radiators
Offset design radiators for space-constrained installations where standard mounting is not feasible.
- Space-saving design
- Flexible mounting options
- Custom offset dimensions
Swan Neck Radiators
Curved inlet/outlet radiators designed for transformers with complex geometries or specific mounting requirements.
- Curved tube design
- Complex geometry accommodation
- Custom bend angles

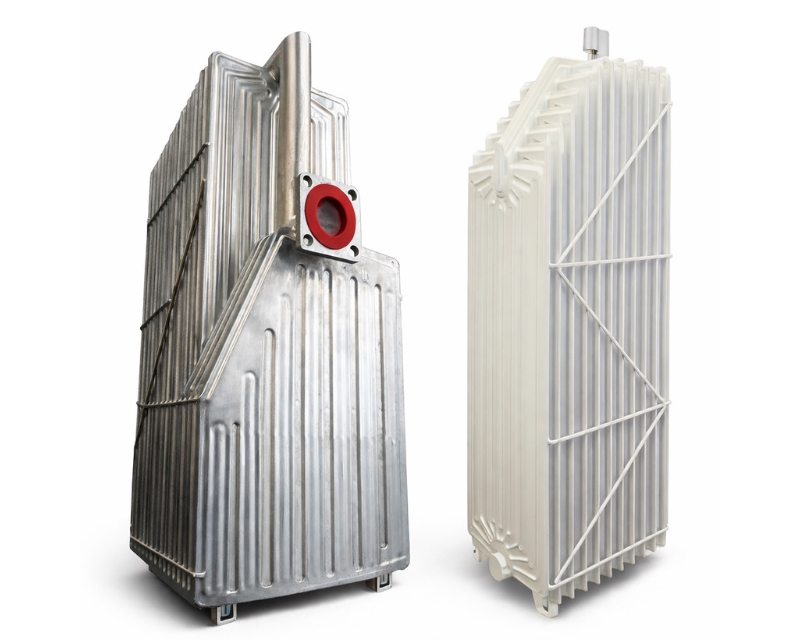

Radiators with Graded Elements
Radiators featuring varying element sizes for optimized heat transfer in specific thermal conditions.
- Variable element sizing
- Optimized heat transfer
- Custom grading patterns

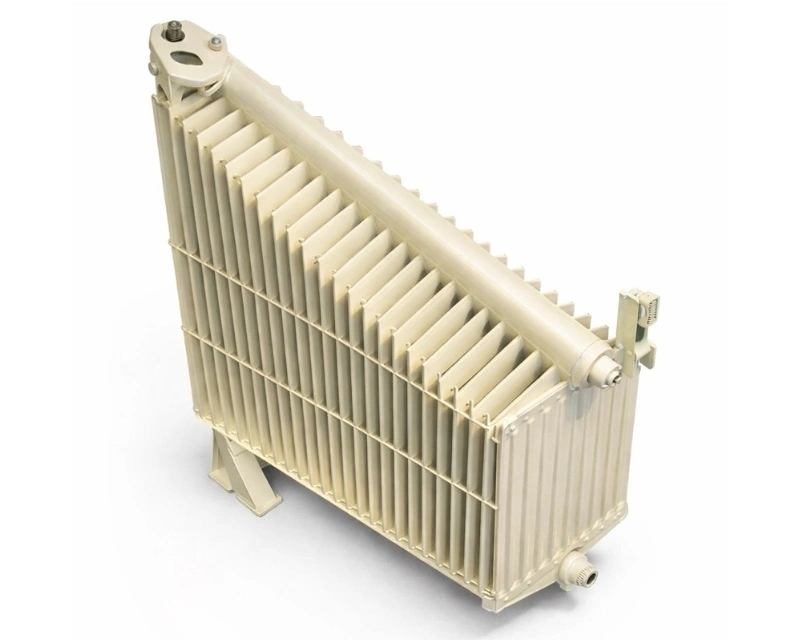

Radiators with Sloped Elements
Angled element design for improved natural convection and enhanced cooling efficiency.
- Angled fin design
- Enhanced convection
- Improved efficiency

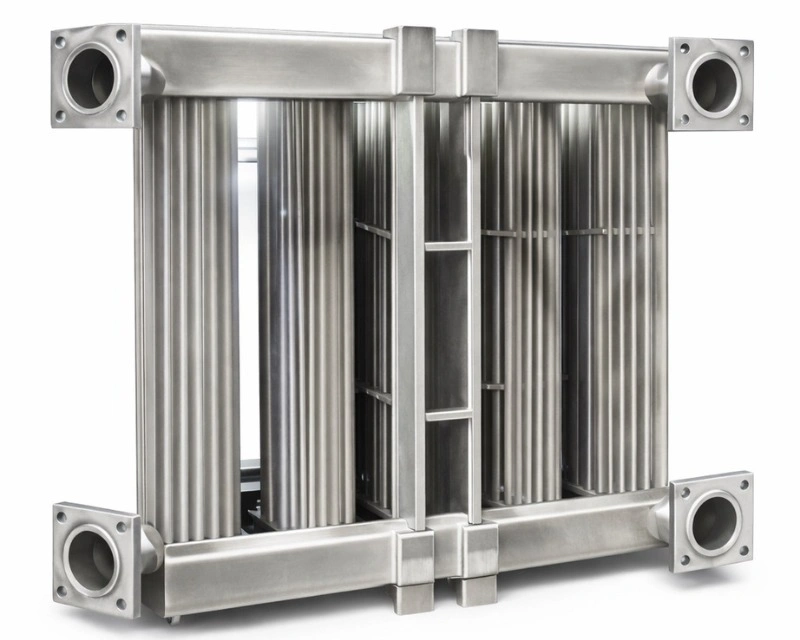

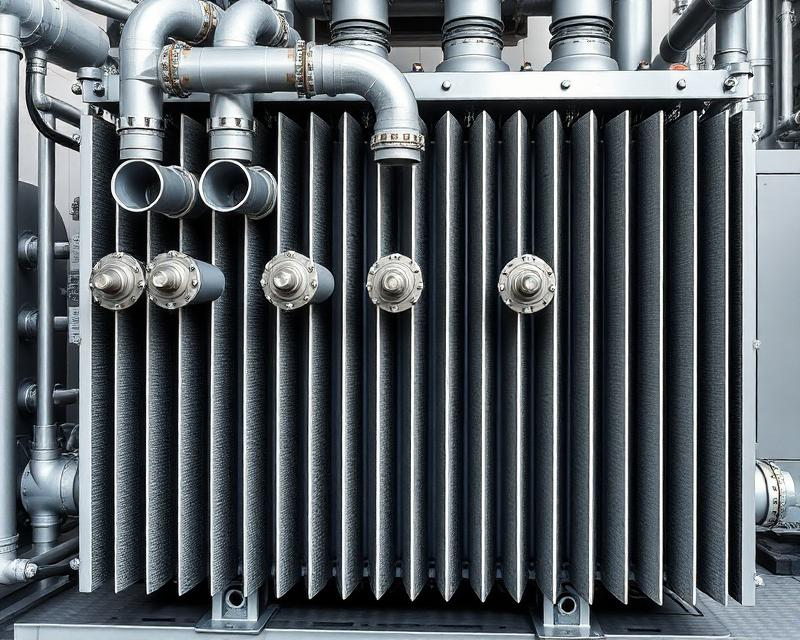

Radiators with Multiple Inlets & Outlets
Complex radiator assemblies with multiple connection points for large transformer applications.
- Multiple connection points
- Large capacity handling
- Balanced oil flow
Customisation & Technical Capability
( In steps of 100 mm)
Custom configurations per customer drawings and specifications.
Surface Treatment & Coating
- 1 Inner surface varnish coating
- 2 Outer surface blast cleaned
- 3 Zinc-chrome red oxide primer
- 4 Finish paint as per customer requirement
- 5 Alternative coating systems available
Coating specifications can be customized based on operating environment requirements.
